SMOK Spirals Clearomizer – Archive Entry
Archive Notice
The SMOK Spirals Clearomizer is preserved in the eliquids.ie Vape Museum archive as an example of compact flavour-focused sub-ohm tanks popular around 2017–2019. Over time, many vapers transitioned to modern pod systems and integrated AIO devices, which gradually replaced small sub-ohm tanks like the Spirals in everyday use.
While the Spirals tank delivered excellent flavour at moderate wattage levels, the rapid evolution of pod technology and simplified refillable systems made compact pod kits the preferred choice for many users.
Released by SMOK around 2017, the Spirals Tank was designed as a flavour-oriented atomizer rather than a high-power cloud tank. The clearomizer features a compact 22mm diameter and a 2ml e-liquid capacity, making it compliant with European TPD regulations and suitable for smaller vape mods. :contentReference[oaicite:0]{index=0}
The tank used SMOK’s Spirals dual-core coil system, built with Japanese organic cotton and large wicking ports to enhance flavour extraction. Two primary coil options were available: 0.6Ω (18–35W) and 0.3Ω (20–45W), alongside an optional single-coil RBA deck for users who preferred building their own coils. :contentReference[oaicite:1]{index=1}

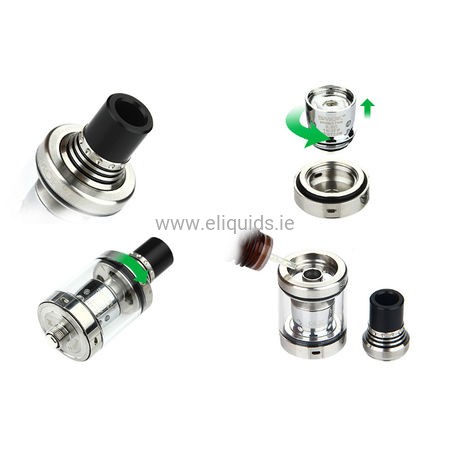

Despite its small size, the Spirals clearomizer included a top-fill system, four adjustable airflow slots and a removable 510 drip tip. These features allowed users to customise airflow between a restricted direct-lung draw and a tighter vape focused on flavour intensity. :contentReference[oaicite:2]{index=2}
- Compact 22mm flavour-focused sub-ohm tank
- 2ml TPD-compliant e-liquid capacity
- Spirals dual-core coil system
- Optional RBA rebuildable deck
- Adjustable airflow and top-fill design
Technical Specification Matrix
| Parameter | Specification | Usage Context | Technical Notes |
|---|---|---|---|
| Tank Type | Sub-ohm clearomizer | Flavor-focused vaping | Compact atomizer platform |
| Diameter | 22mm | Fits most small vape mods | Balanced size for mini mods |
| Height | ~48mm | Compact build | Short tank profile |
| Tank Capacity | 2ml | EU / Ireland TPD compliance | Frequent refilling required |
| Coil Options | 0.6Ω / 0.3Ω Spirals coils | DL or restricted DL vaping | Dual-core Kanthal design |
| Recommended Wattage | 18W – 45W | Moderate power vaping | Depends on installed coil |
| Filling System | Threaded top-fill | Easy daily refill | Two fill ports |
| Airflow | Quad bottom airflow slots | Adjustable draw resistance | Supports flavour-focused vape |
| Connection | 510 thread | Universal mod compatibility | Standard industry connector |
Market & Regulatory Context – Ireland
During the late 2010s the SMOK Spirals tank was often paired with compact vape mods and used by flavour-focused vapers across Ireland. Shops in cities such as Galway commonly recommended this tank to users who preferred a smaller setup but still wanted sub-ohm performance.
Under the EU Tobacco Products Directive (TPD), refillable tanks sold in Ireland are limited to a capacity of 2ml. The Spirals clearomizer was designed specifically to meet this requirement for the European market. :contentReference[oaicite:3]{index=3}
FAQ – SMOK Spirals Clearomizer
What e-liquid capacity does the SMOK Spirals tank have?
The tank holds approximately 2ml of e-liquid, which complies with EU TPD regulations.
What coils work with the SMOK Spirals tank?
The tank uses Spirals dual-core coils including 0.6Ω and 0.3Ω versions, plus an optional RBA deck for custom builds.
What wattage range is recommended for Spirals coils?
The typical power range is between 18W and 45W depending on the installed coil.
Why was the SMOK Spirals tank discontinued?
Many vapers moved to modern pod systems and integrated devices, which simplified refilling and coil maintenance.
