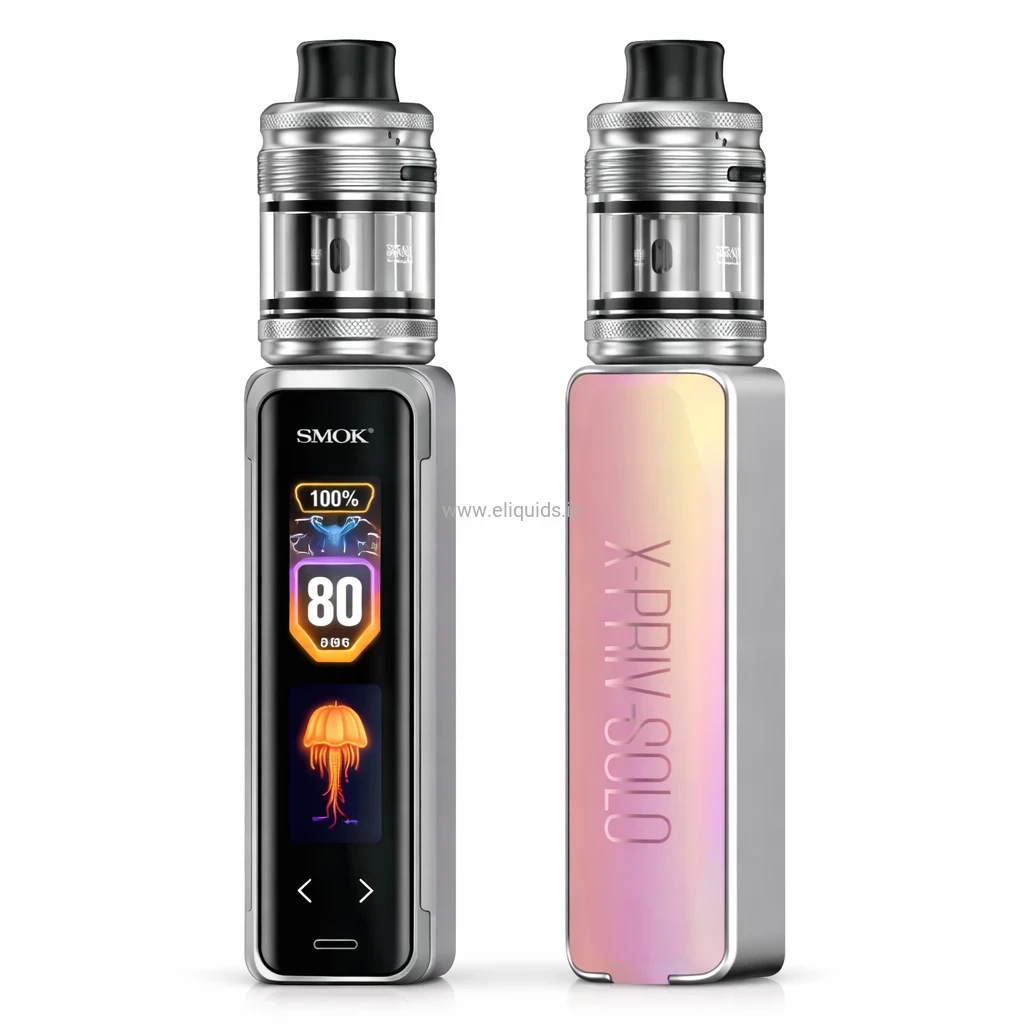

Smoktech X-PRIV Solo 80W Full Kit
Regular price:
product unavailable
Description
SMOK X-PRIV Solo 80W Full Kit – Single 18650 Regulated 510 System | TF-D Subtank (EU 2ml)
The SMOK X-PRIV Solo 80W is a single-18650 regulated 510 mod kit designed for mid-power DTL and restricted DTL configurations. Ireland and EU retail units are supplied with the TF-D Subtank in 2ml TPD-compliant format.
Battery not included. Requires one external high-drain 18650 cell suitable for regulated devices.
Core Power Architecture
- Battery format: 1 × 18650 (external, replaceable)
- Output range: 5W–80W (regulated)
- Voltage behaviour: Chip-controlled output stabilisation
- Connector: Standard 510 thread platform
- Charging interface: USB-C (charging performance depends on adapter source)
This configuration positions the X-PRIV Solo within the single-cell regulated mid-output category typical for compact 510 mod systems.
Display & Interface Logic
- Screen: 0.96” TFT colour display
- Touch-enabled navigation interface
- Real-time monitoring: wattage, coil resistance, battery level, puff counter
- On-device adjustment without external software
Firmware layout may vary by production batch. Always verify on-device display parameters before first activation.
TF-D Subtank – Ireland / EU Configuration
- Capacity: 2ml (EU TPD configuration)
- Filling method: Top-fill mechanism
- Airflow: Adjustable bottom airflow control
- Coil installation: Push-fit D-Coil platform
Non-TPD markets may list larger tank capacities. Ireland and EU retail supply remains limited to 2ml in accordance with TPD volume restrictions.
D-Coil Platform – Resistance & Operating Windows
- 0.15Ω Single Mesh: 55–65W (optimal ~60W)
- 0.23Ω Dual Mesh: 45–55W (optimal ~50W)
- 0.4Ω Dual Mesh: 25–35W (optimal ~25W)
- Recommended liquid profile: Higher-VG blends (commonly ~70% VG)
- Operating requirement: Remain within printed wattage range on coil head
- Priming protocol: Fully saturate cotton before first activation
Cold Climate Advisory (Ireland): At temperatures below approximately 10°C, high-VG liquids increase in viscosity. Allow extended saturation time before initial firing to reduce dry-hit probability.
Hardware Specification Matrix
| Hardware Layer | Specification | Operational Context | Technical Notes |
|---|---|---|---|
| Battery Architecture | Single 18650 (external) | Replaceable cell configuration | Use high-drain cells appropriate for regulated output devices |
| Power Output | 5W–80W regulated | Mid-range single-cell class | Exceeding coil limits may reduce lifespan |
| Tank System | TF-D Subtank (2ml EU) | Ireland / EU retail supply | TPD capacity compliance |
| Coil Platform | SMOK D-Coil Mesh Series | DTL / RDL dependent on resistance | 0.15Ω / 0.23Ω / 0.4Ω variants |
| User Interface | 0.96” TFT (touch) | Integrated on-device control | Layout may vary by firmware batch |
| Connector Standard | 510 Thread | Cross-compatible tank ecosystem | Standard regulated mod architecture |
Common Configuration Errors
- Using unsuitable or damaged 18650 batteries
- Firing before complete wick saturation
- Operating outside printed coil wattage window
- Refilling and activating immediately without re-saturation period
Device Classification
- System Type: Regulated 510 Mod + EU 2ml Tank
- Battery Platform: External single 18650
- Inhalation Profile: DTL / Restricted DTL (coil dependent)
- Retail Region: Ireland / EU (TPD 2ml configuration)
Adult Use Notice (Ireland): Intended for adults aged 18+. Keep out of reach of children. Nicotine is addictive.
Document Update Notice:
Last technical verification and update: 18 February 2026.
