Innokin Coolfire Z60 Zlide Kit 6–60W 2500mAh

Description

Innokin Coolfire Z60 Zlide Kit – 6–60W Regulated Mod | 2500mAh Internal Battery | Zlide Top Tank 2ml

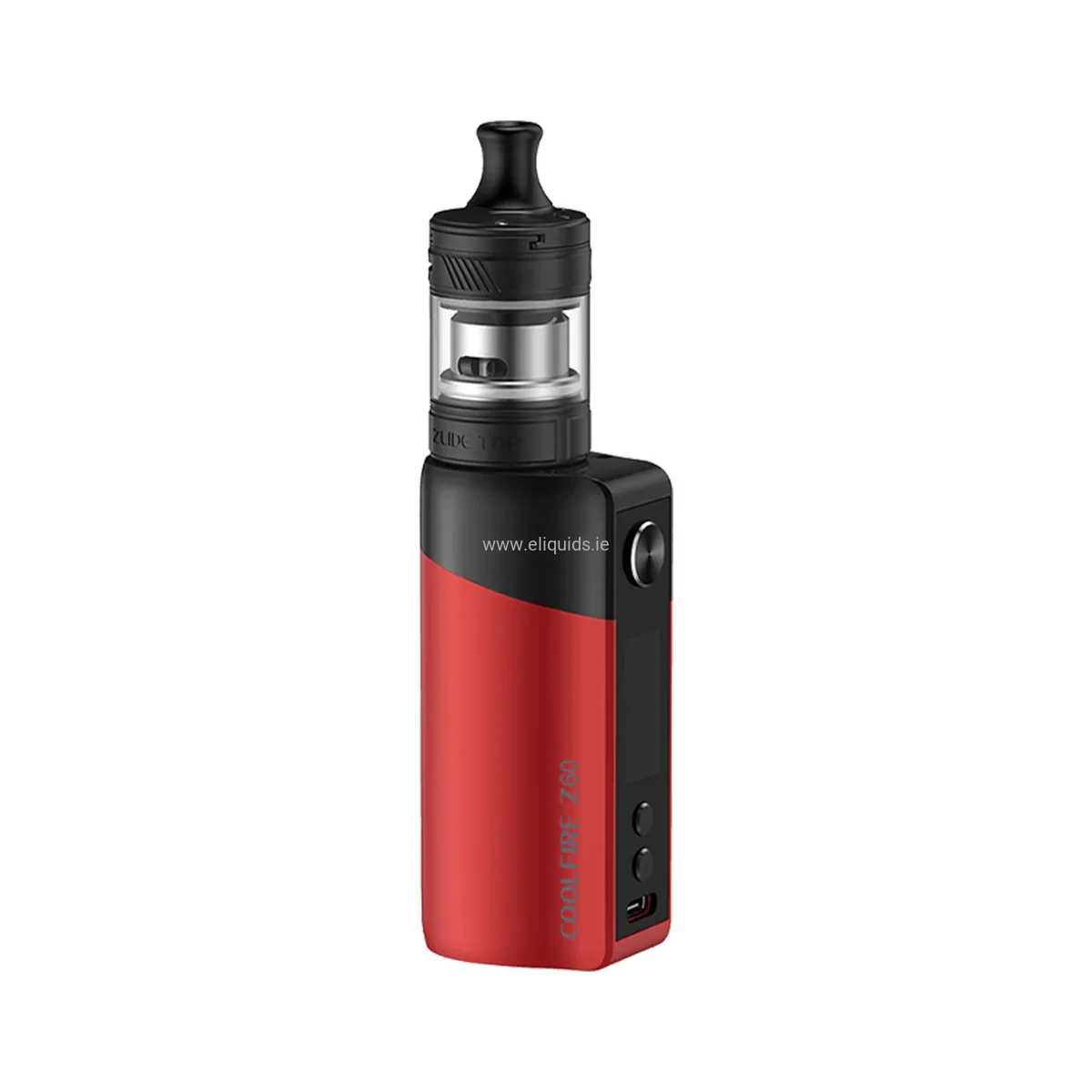

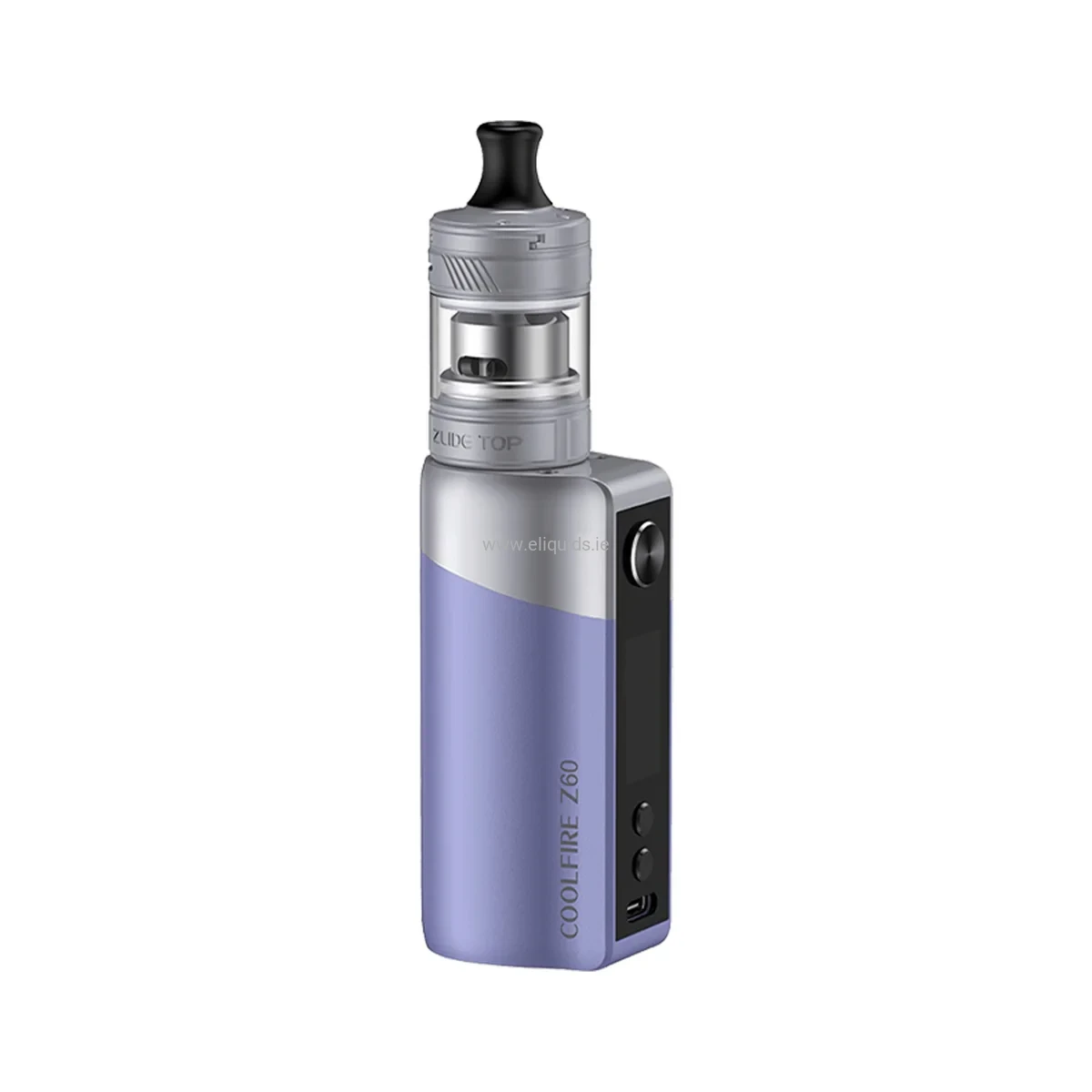

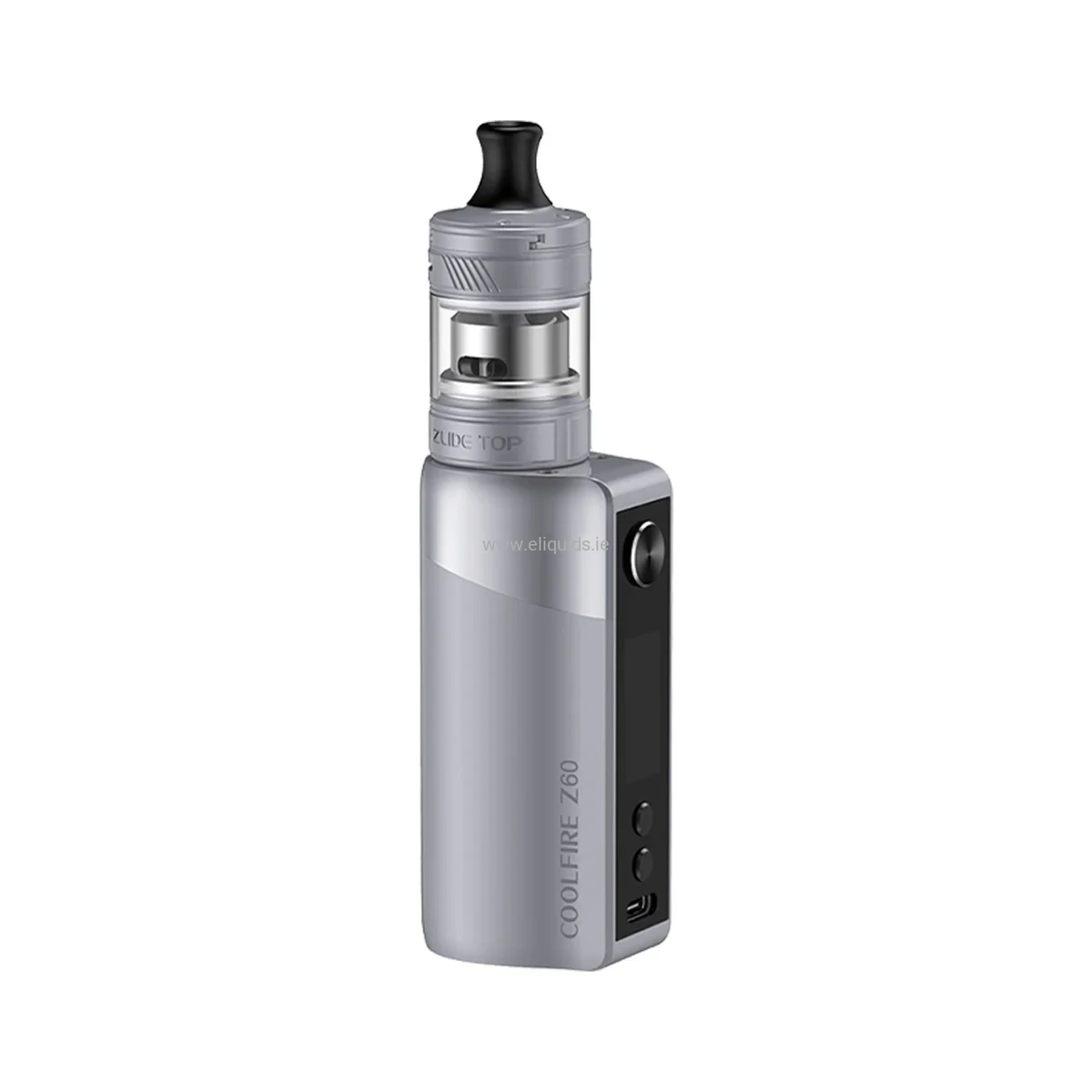

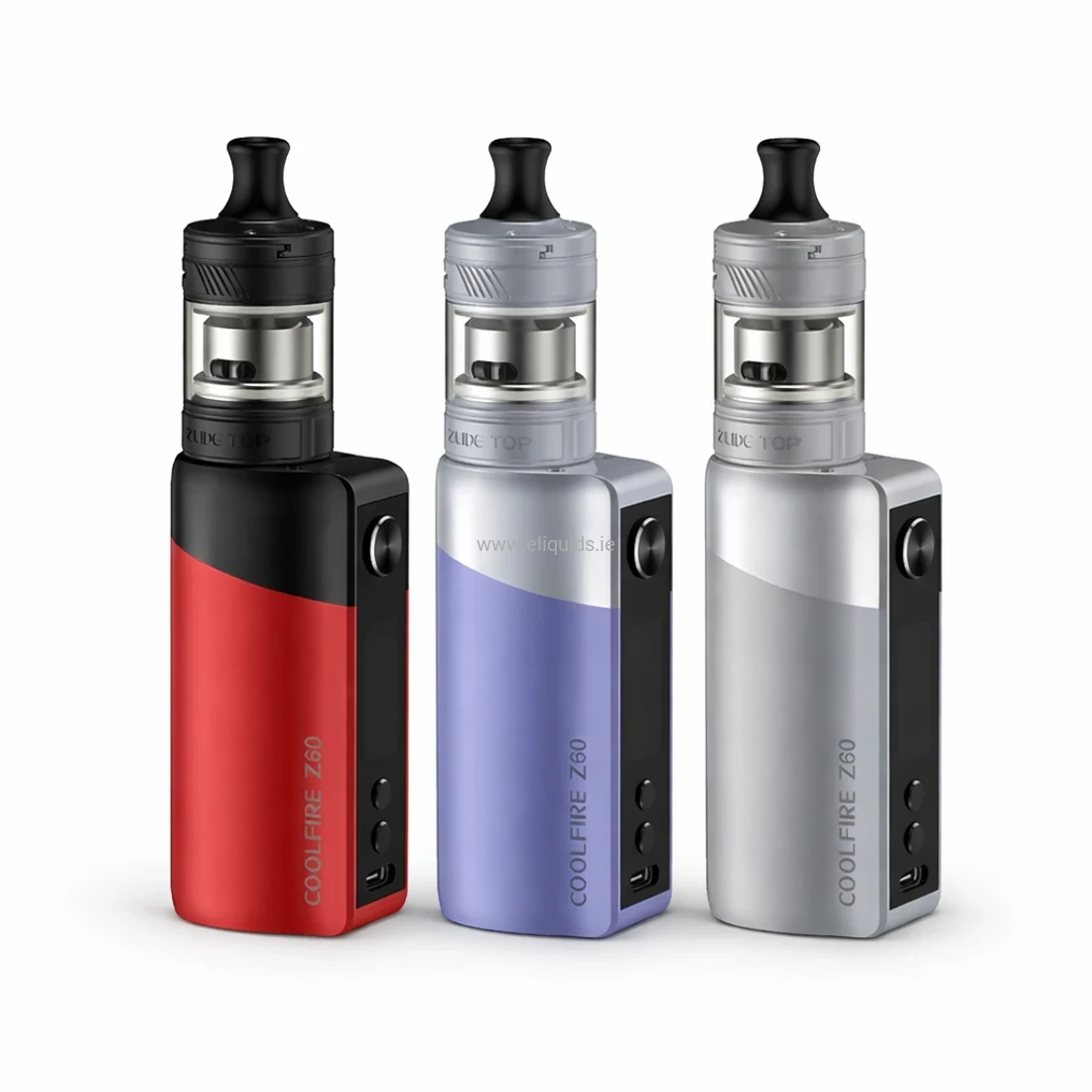

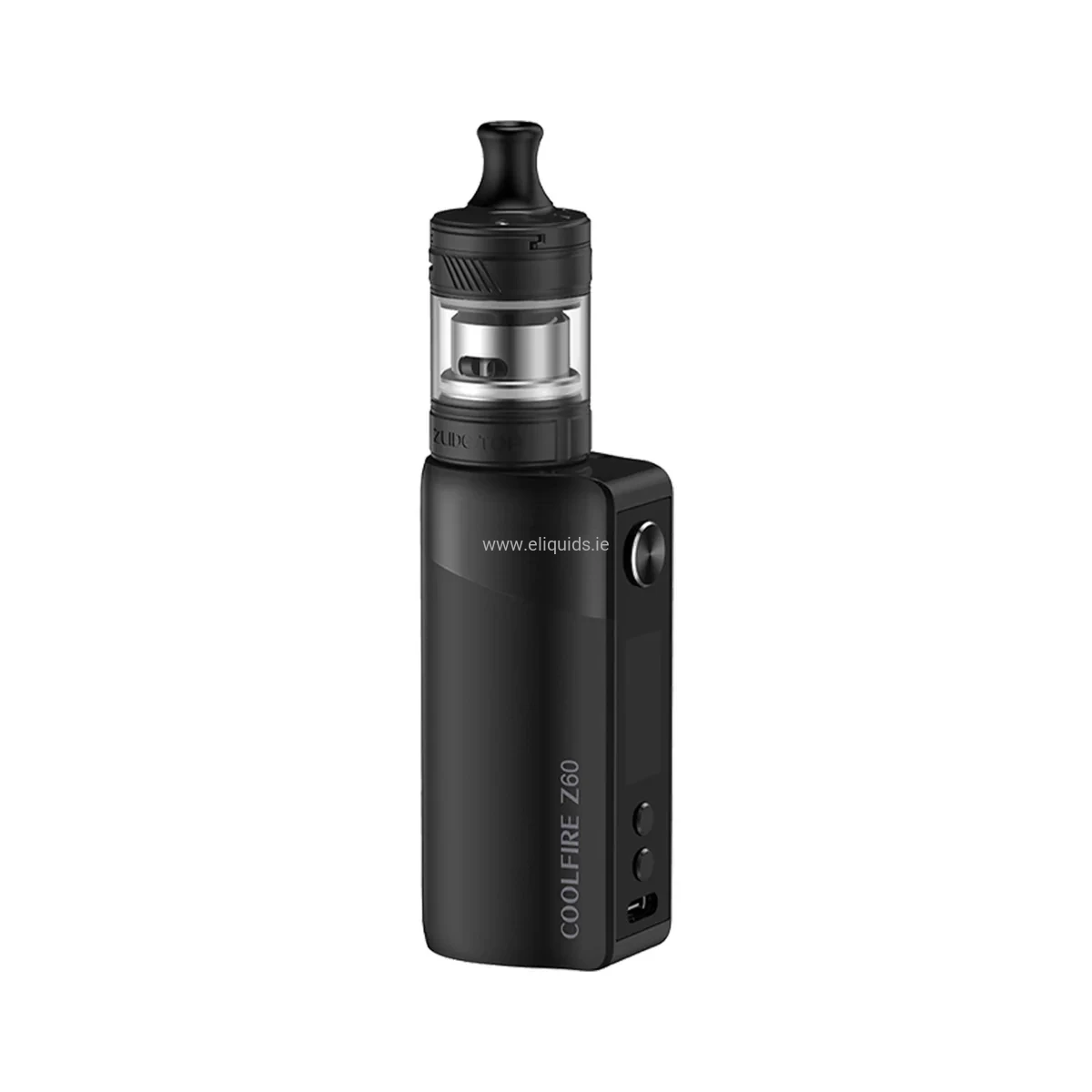

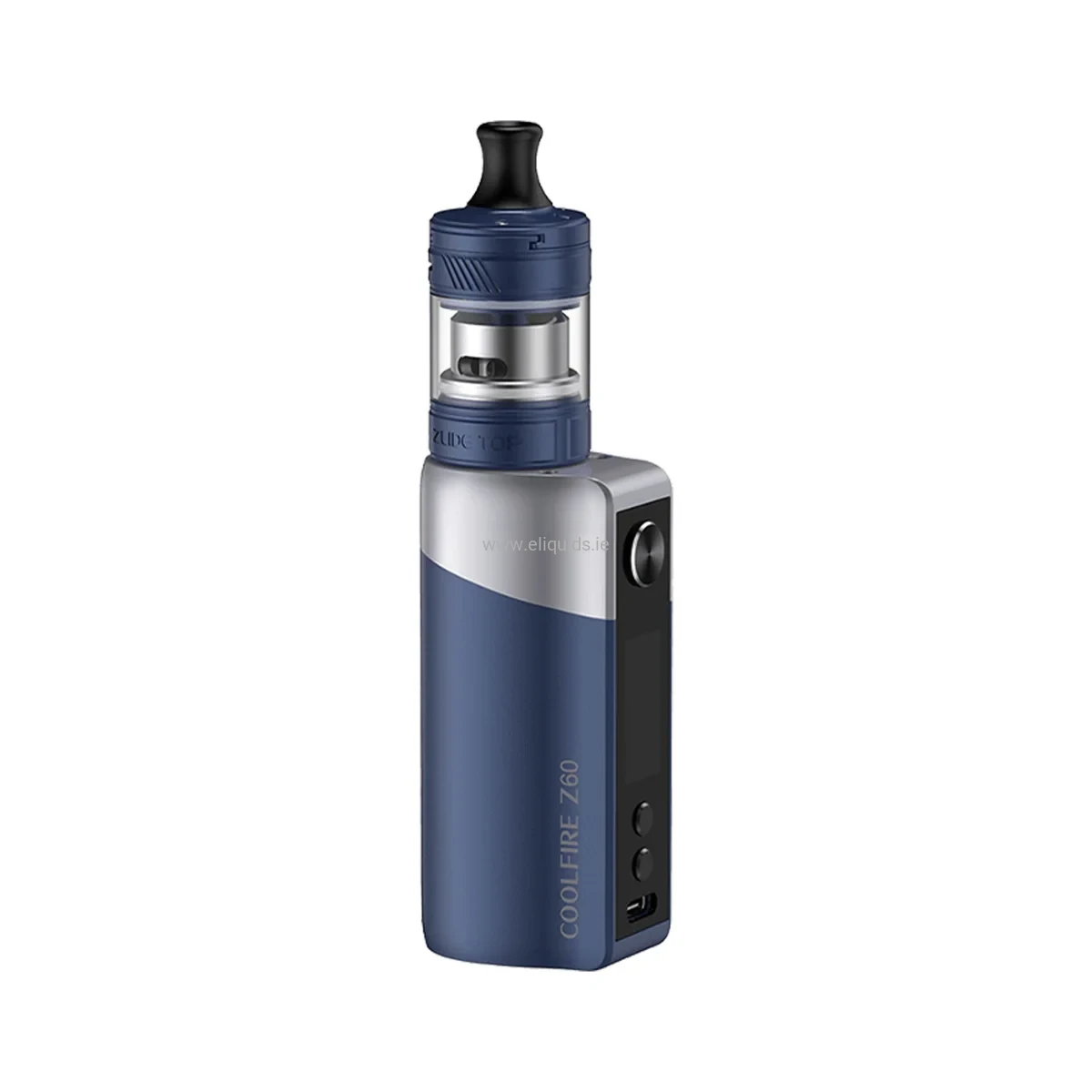

The Innokin Coolfire Z60 Zlide Kit is a regulated 510 device powered by a 2500mAh integrated battery and paired with the Zlide Top tank (EU 2ml version). The mod provides adjustable output from 6W to 60W and supports the full Innokin Z-Coil platform.

This is a traditional threaded 510 system designed for replaceable coil tanks. It is not a pod device.

Short Technical Overview

Coolfire Z60 integrates Innokin’s regulated chipset with variable wattage control, Coil+ mode and Refresh function. The device includes a physical master on/off switch and a 0.96” OLED display for real-time monitoring of resistance, power and battery level.

Quick Technical Summary

Activation: Fire button
Battery Capacity: 2500mAh integrated
Output Range: 6W–60W adjustable
Display: 0.96” OLED screen
Charging: USB-C
Tank Capacity: 2ml (EU TPD)
Coil Platform: Innokin Z-Coils (including DuoPrime)
Resistance Support: approx. 0.2Ω – 3.5Ω

What’s in the Box

1 × Innokin Coolfire Z60 Mod (2500mAh built-in battery)
1 × Zlide Top Tank (2ml EU)
1 × 0.6Ω Z-Coil DuoPrime
1 × 0.3Ω Z-Coil
1 × USB-C Charging Cable
1 × Spare Parts Pack
1 × User Manual

Box contents may vary by batch.

Power Modes & Control Logic

Variable Wattage (6–60W)
Coil+ mode (post-draw pulse to maintain wick saturation)
Refresh mode (low-power pulse to resaturate coil)
Master hardware power switch

Tank Filling Protocol – Zlide Top

Slide the top cap to reveal fill port
Insert e-liquid bottle into side fill port
Avoid central chimney
Close cap securely before use
Allow 5–7 minutes for first coil saturation

E-Liquid Compatibility Guidance

0.6Ω Z-Coil (MTL / RDL):

Recommended VG/PG: 50–60VG
Typical operating range: approx. 9–13W

0.3Ω Z-Coil (RDL):

Recommended VG/PG: 60VG
Typical operating range: approx. 30–40W

Viscosity Note (Ireland): VG thickens below ~10°C. In colder conditions extend priming time and avoid immediate high-wattage activation.

Hardware Specification Matrix

Component	Technical Specification	User Action	Compliance Notes
Battery	2500mAh integrated	Recharge via USB-C	Electronic device – WEEE applicable
Output	6–60W regulated	Adjust using + / – buttons	OLED monitored output
Tank	Zlide Top – 2ml	Slide top-fill	EU TPD compliant
Coil Platform	Innokin Z-Coil Series	Install compatible coils only	Resistance defines recommended wattage

Safety Features

Short-circuit protection
Overheat protection
Low-voltage protection
Automatic cut-off

Adult Use Notice (Ireland): This product is intended for adults aged 18+ only. Keep out of reach of children. Nicotine is addictive.

Document Update Notice:
Last technical verification and update: 16 February 2026.
