GeekVape L200 Classic Mod

Order dispatch date: dispatch the same working day for orders placed by 3pm

Price: €59.99

Regular price:

59.99

* Color:

quantity UNIT

You gain 59 points [?]

product unavailable

* - Field mandatory

Vendor: Geekvape

Description

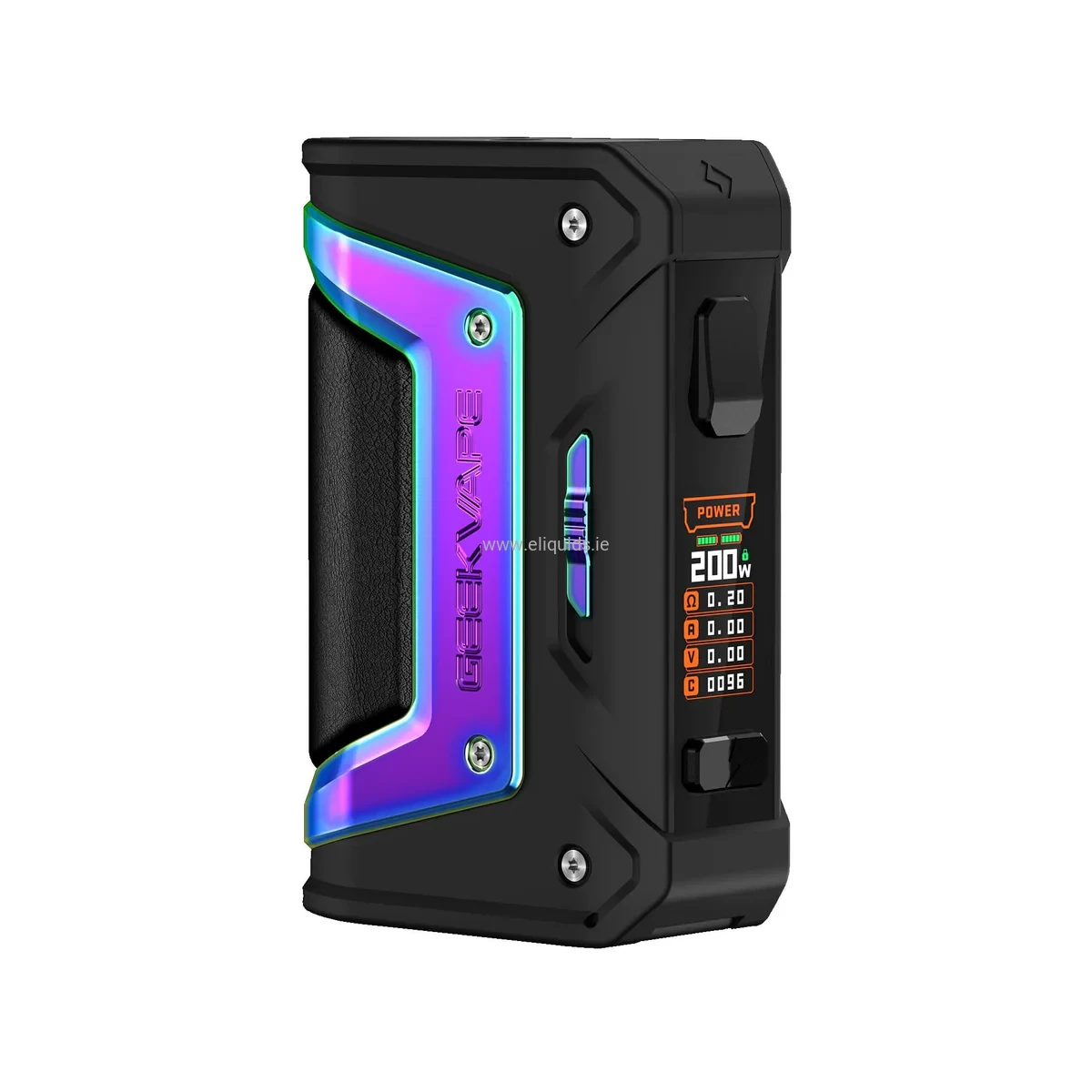

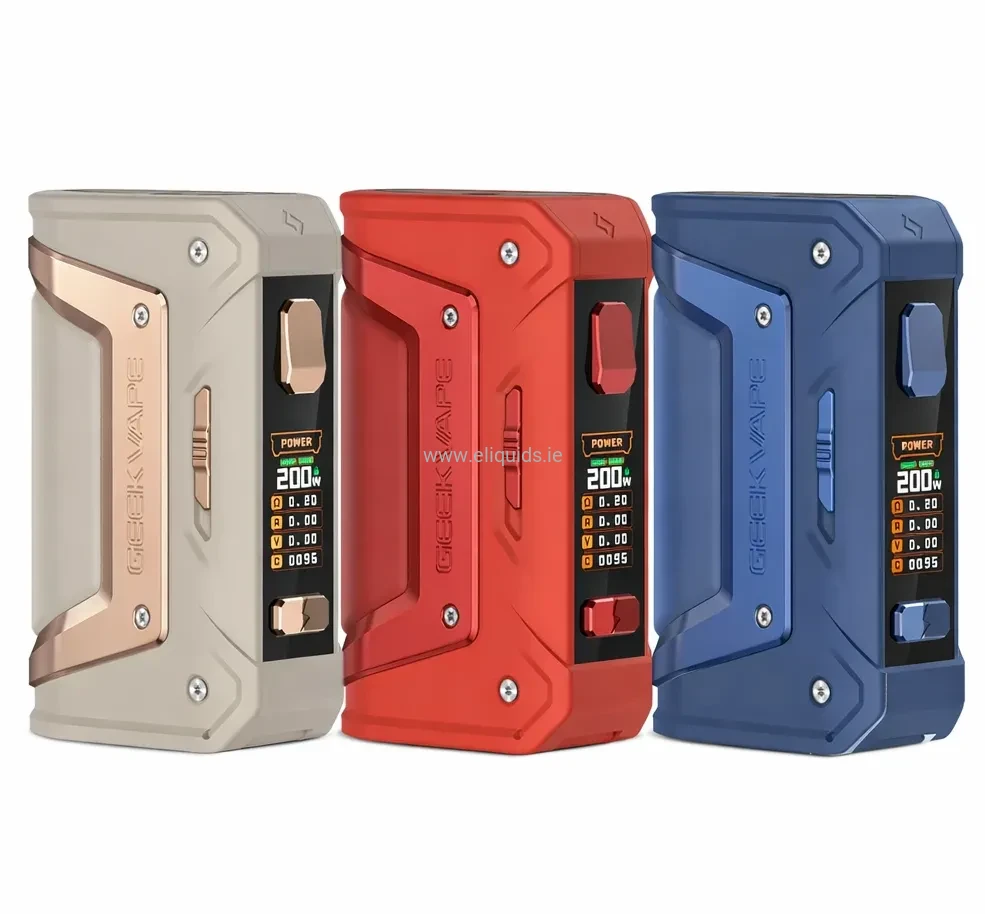

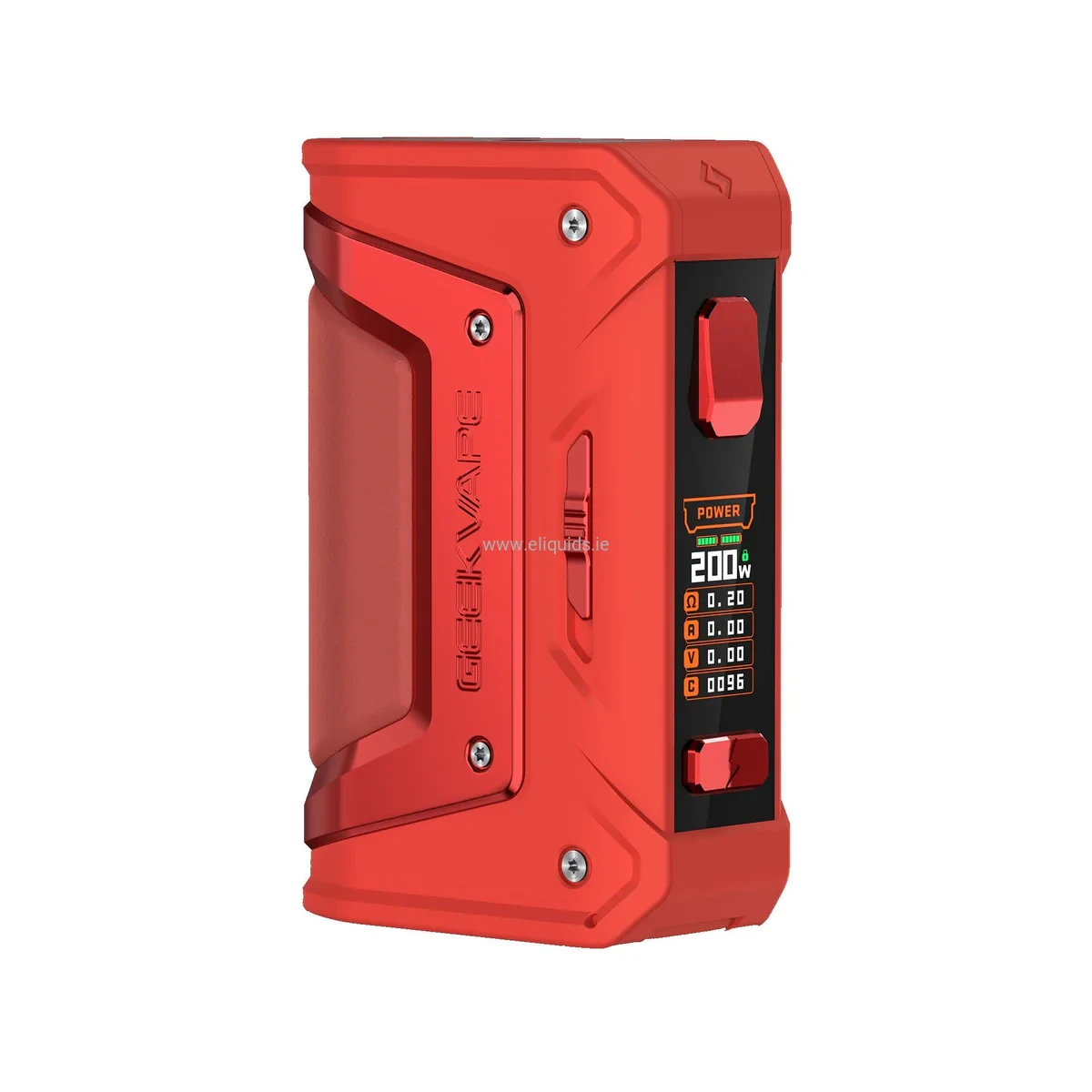

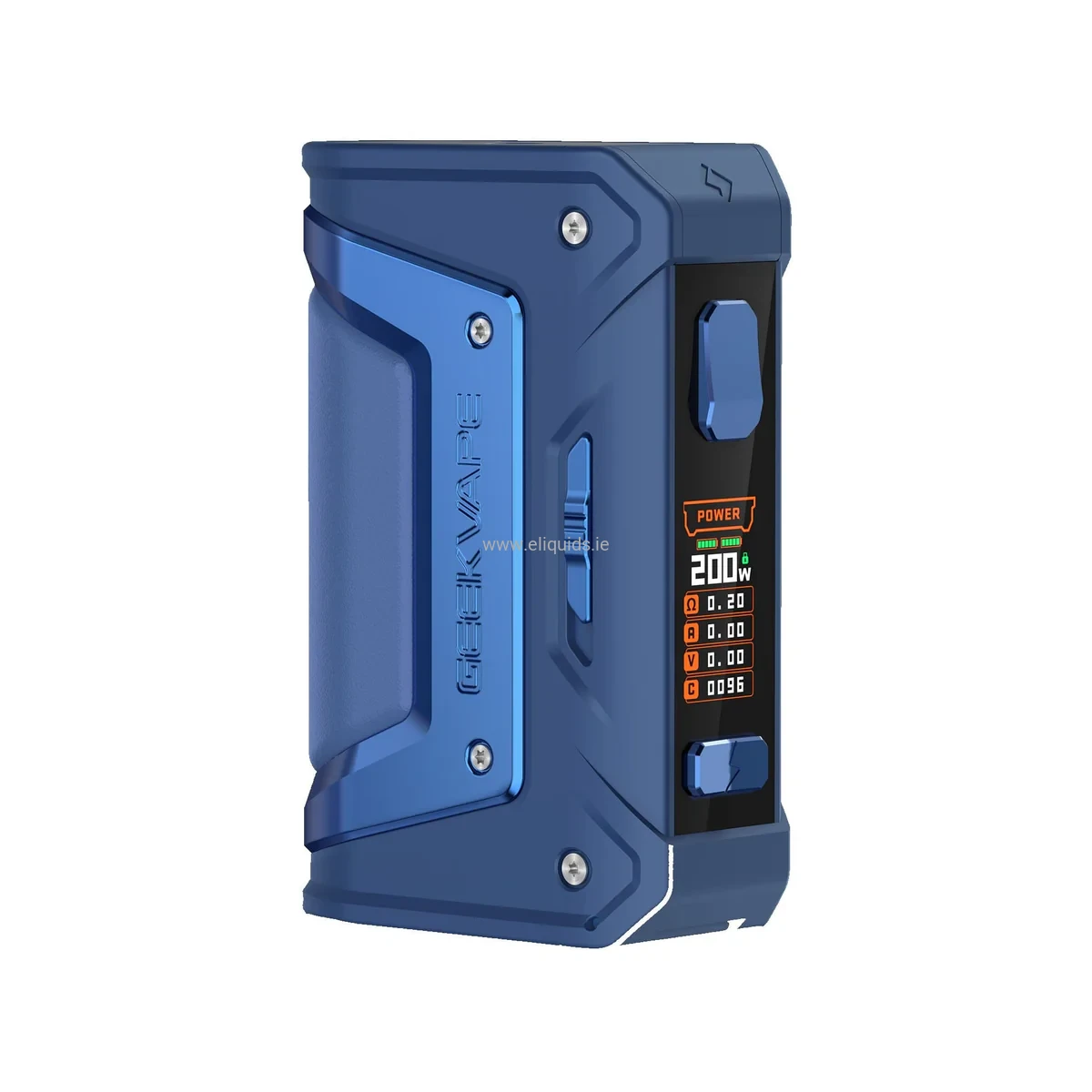

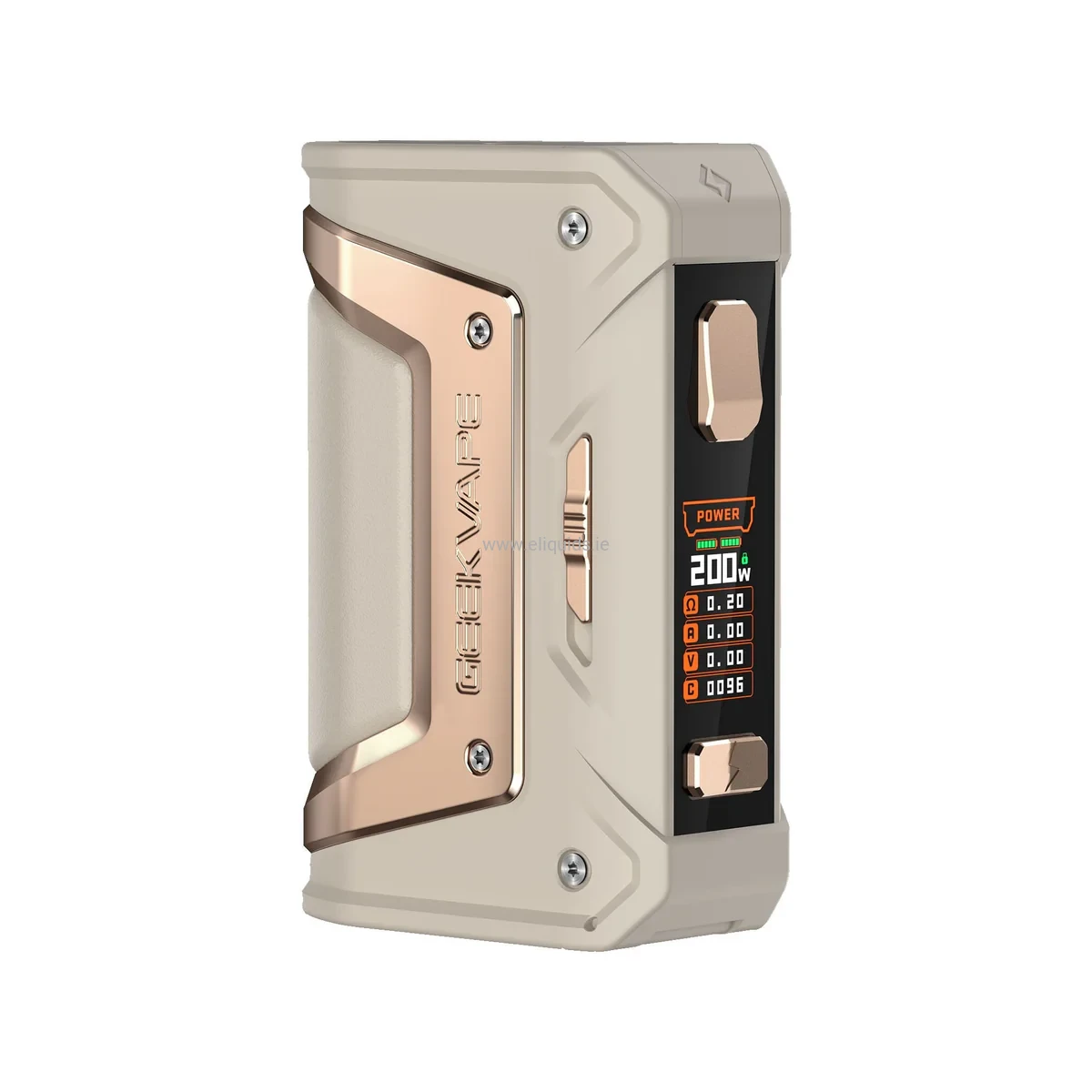

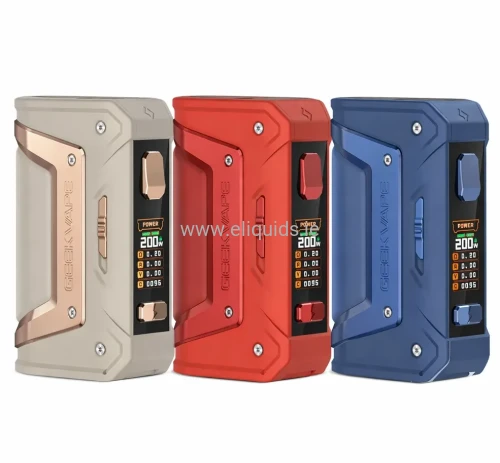

GeekVape L200 Classic Mod – 5–200W | Dual 21700 / 18650 (Adapters) | AS Chip | IP68

The GeekVape L200 Classic is a dual-battery regulated mod designed for high-output operation up to 200W. The platform follows the Aegis durability architecture and uses Geekvape’s AS-series chipset for controlled power delivery and integrated protection logic.

Batteries not included. The device supports 2 × external 21700 cells or 2 × external 18650 cells using the supplied adapter sleeves. Always use a matched pair (same brand, model, capacity, and charge cycle history) to ensure balanced discharge behaviour.

Core Capabilities

Output Range: 5–200W (regulated)
Battery Format: Dual 21700 or dual 18650 (with included adapters)
Atomiser Resistance Range: 0.1Ω – 3.0Ω
Maximum Output Voltage: up to 12V
Maximum Output Current: up to 45A
Ingress Protection Rating: IP68
Connector: Standard 510 thread
Charging Port: USB Type-C (commonly specified 5V/2A; verify on packaging for Ireland/EU batch)

Chipset & Regulation System

Expand chipset & protection details

The device operates on Geekvape’s AS chipset platform, managing regulated wattage output and device safety logic. Mode availability may vary slightly depending on firmware revision supplied to the Ireland/EU market.

Variable Wattage (Power Mode)
Temperature Control (Ni / Ti / SS where supported)
TCR adjustment (where supported)
VPC / Curve mode (power curve configuration)
Bypass mode (direct-output behaviour within safety parameters)
Integrated safety protections: short-circuit, overheat, overcurrent, low-voltage, and over-discharge cutoff

Battery & Runtime Configuration

Expand battery pairing guidance

Use married pairs (cells charged and discharged together only).
Do not mix brands, capacities, or different-age batteries.
Inspect wraps and insulators before installation.
USB-C charging is supported, but routine charging in an external smart charger is recommended for long-term cell maintenance.

IP68 Structural Protection

View environmental resistance notes

IP68 classification for dust and water resistance under defined laboratory conditions
Sealed chassis architecture aligned with Aegis durability design

IP ratings apply under controlled test environments. Seal wear, impact damage, or improper port closure may reduce environmental resistance over time.

Intended Usage Profile

High-wattage sub-ohm tank configurations (within coil manufacturer limits)
Direct-lung (DTL) setups requiring sustained regulated power delivery
Extended runtime configuration using dual 21700 cells
Users requiring reinforced chassis construction for variable environments

Hardware Specification Matrix

Component	Specification	Operational Context	Notes
Output	5–200W	Wide regulated operating range	Set wattage within coil rating
Battery System	2 × 21700 or 2 × 18650 (adapters included)	Flexible runtime configuration	Cells not included
Voltage / Current Limits	Up to 12V / up to 45A	Supports demanding coil loads within chipset limits	Battery condition influences sustained output
IP Rating	IP68	Dust & water resistance classification	Dependent on seal condition
Connector	510 threaded	Broad tank compatibility	Check top plate clearance

Adult Use Notice (Ireland): Intended for adults aged 18+ in Ireland.

Document Update Notice: Last technical verification 18 February 2026.
