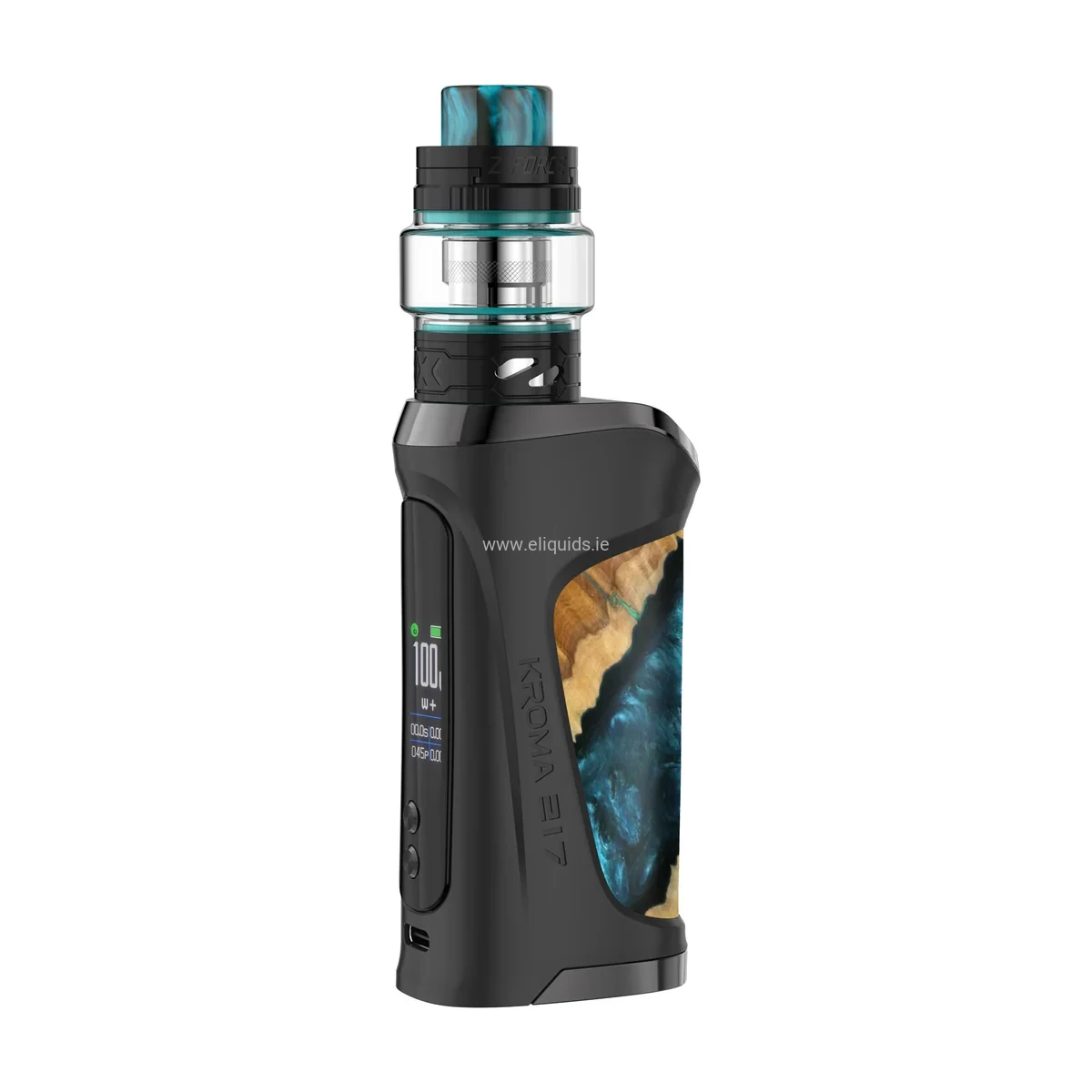

Innokin Kroma 217 Z Force Vape Kit
Regular price:
product unavailable
Description
Innokin Kroma 217 Z Force Kit – 5–100W Mod | 21700 / 20700 / 18650 | Z Force Tank 2ml
The Innokin Kroma 217 Z Force Kit is a regulated 510 box mod designed for a single external battery. It supports 21700, 20700 and 18650 battery formats (18650 requires the included adapter).
Battery is NOT included in the kit.
For users selecting the 18650 format, compatible batteries are available here: 18650 Battery – Eliquids.ie
Full 100W output is available when using a 21700 or 20700 battery. When operating with an 18650 battery, the chipset automatically limits maximum output to 80W for safety and current control.
The kit includes the Z Force tank (EU TPD 2ml version) using ZF DUO Prime dual-mesh coils. This is a threaded 510 system and not a pod device.
Construction & Platform

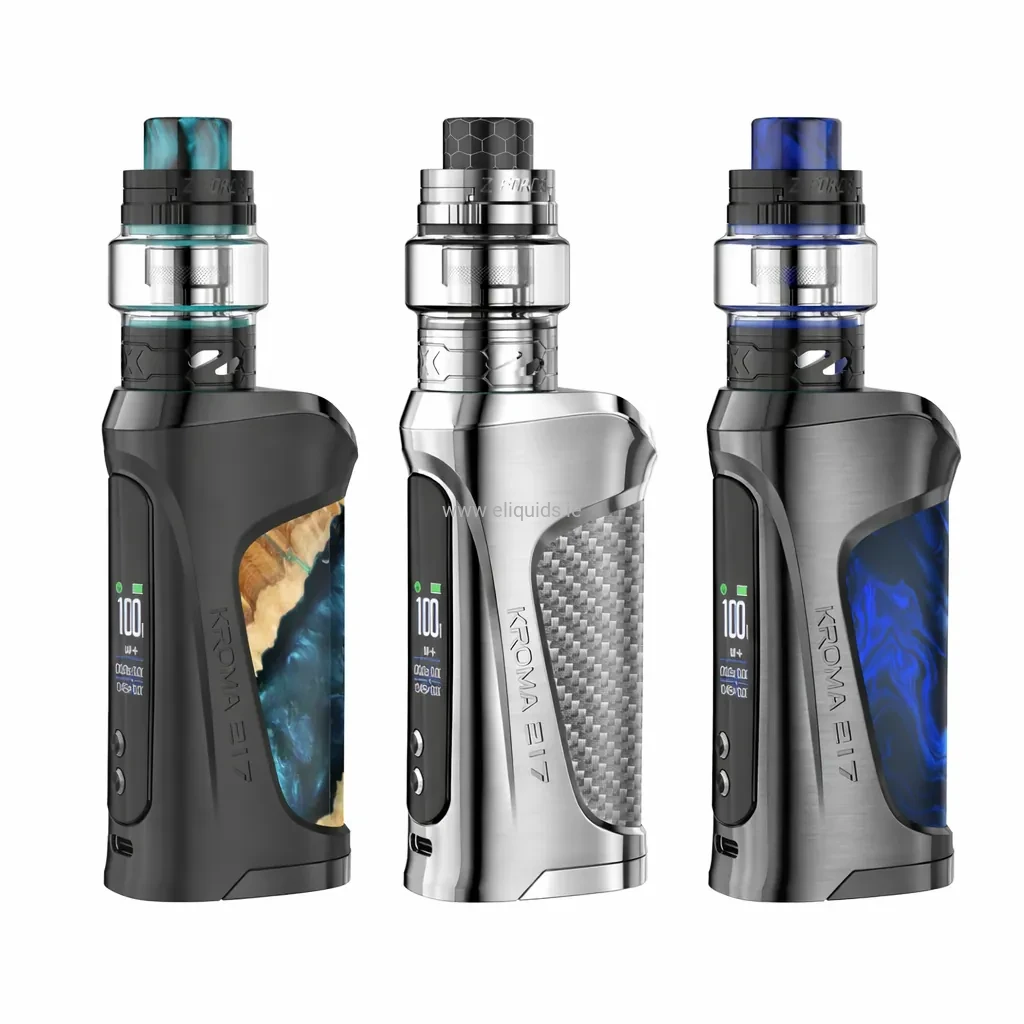

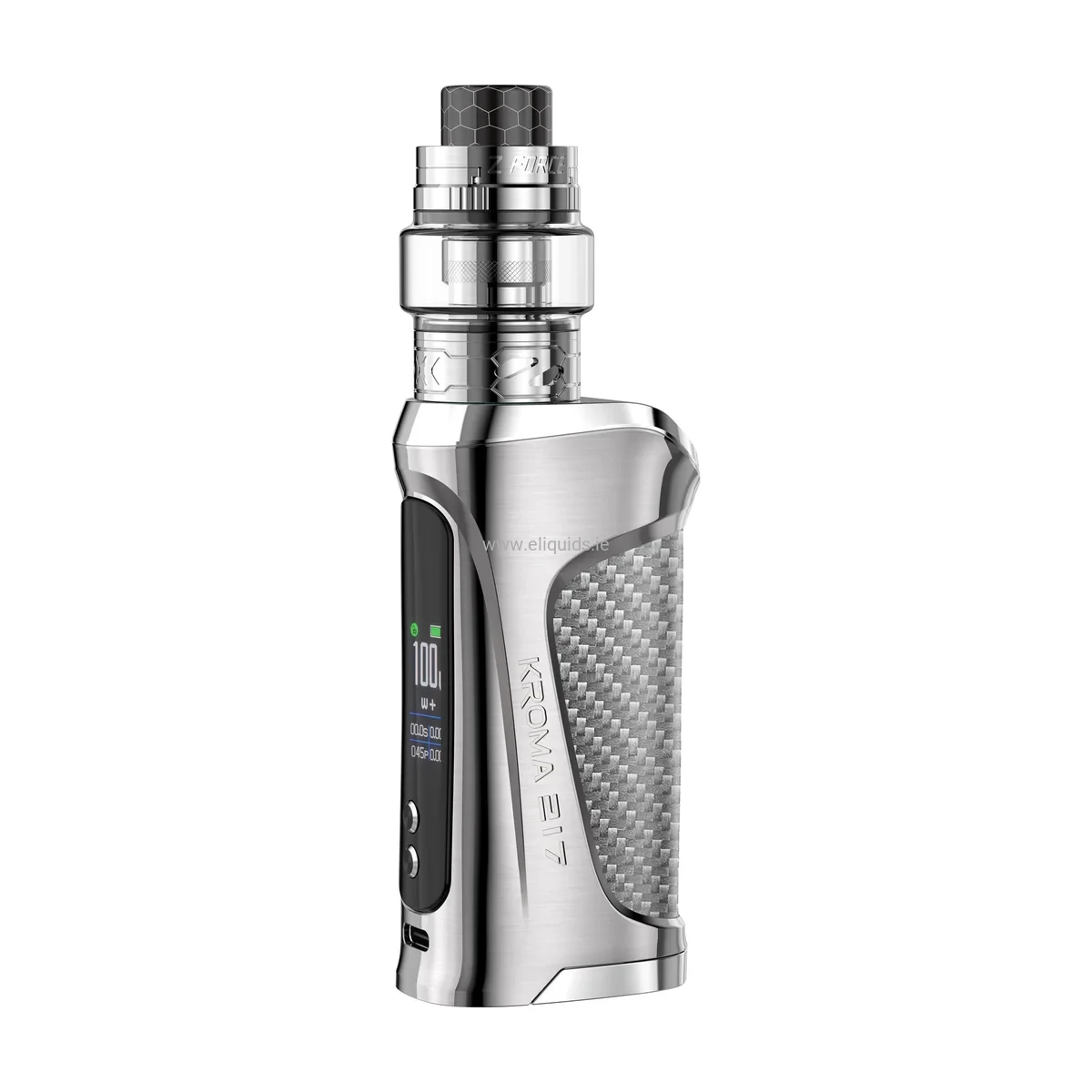

The chassis is constructed from zinc alloy with carbon fibre or leather grip panels (variant dependent). The battery is secured via a threaded bottom cap. The device features a colour display for wattage, resistance and battery monitoring.
Quick Technical Specifications
- Battery Support: 21700 / 20700 / 18650
- Max Output (21700 / 20700): 100W
- Max Output (18650): 80W (automatic limit)
- Output Range: 5–100W adjustable
- Charging: USB-C
- Tank Capacity: 2ml EU TPD
- Coil Platform: ZF DUO Prime
- Recommended Battery Rating: 20A+ continuous discharge
What’s in the Box
- 1 × Innokin Kroma 217 Mod
- 1 × Z Force Tank – 2ml (EU version)
- 1 × 0.2Ω ZF DUO Prime Coil
- 1 × 0.3Ω ZF DUO Prime Coil
- 1 × 18650 Adapter
- 1 × USB-C Cable
- 1 × Spare Parts Pack
- 1 × User Manual
Important: Battery is not included.
ZF DUO Prime Coil Technology
ZF DUO Prime coils use dual mesh layers positioned inside and outside the cotton core. This design improves liquid distribution and stabilises vaporisation at higher wattage levels.
Z Force Tank – Leak Shield System
The Z Force tank features an automatic liquid shutoff mechanism. When the coil is removed, internal liquid channels close to minimise leakage. Coil replacement can be performed while liquid remains in the tank.
Tank Filling Protocol
- Slide the top cap to expose the fill port
- Fill through the side opening
- Avoid the central chimney
- Close securely before use
- Allow 5–7 minutes for initial coil saturation
E-Liquid Compatibility
0.2Ω ZF DUO Prime:
- Recommended VG/PG: 60–70VG
- Typical operating range: approx. 50–80W
0.3Ω ZF DUO Prime:
- Recommended VG/PG: 60VG
- Typical operating range: approx. 30–45W
Viscosity Note (Ireland): In colder conditions VG thickens. Extend priming time and avoid immediate high-wattage activation.
Hardware Specification Matrix
| Component | Specification | Requirement | System Note |
|---|---|---|---|
| Battery | 21700 / 20700 / 18650 | High-drain 20A+ recommended | 100W (21700/20700) / 80W (18650) |
| Output | 5–100W regulated | Adjust wattage to coil rating | Displayed on colour screen |
| Tank | Z Force – 2ml | Slide top-fill | EU TPD compliant |
| Coils | ZF DUO Prime | Install ZF coils only | Dual-mesh heating |
FAQ
No. The battery is not included in this kit. A 21700 or 20700 battery allows full 100W output. An 18650 battery limits output to 80W. Yes. The Z Force tank automatically closes liquid channels when the coil is removed. 60–70VG liquids are typically suitable for ZF DUO Prime sub-ohm coils.Is a battery included?
Which battery gives full 100W performance?
Can the coil be replaced with liquid inside?
What VG/PG ratio works best?
Adult Use Notice (Ireland): Intended for adults aged 18+. Keep out of reach of children. Nicotine is addictive.
Document Update Notice:
Last technical verification and update: 16 February 2026.
