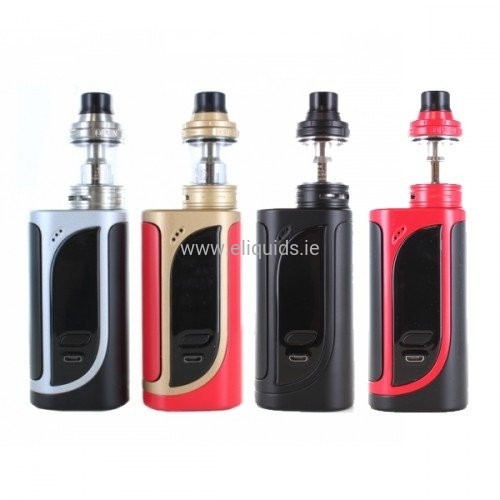

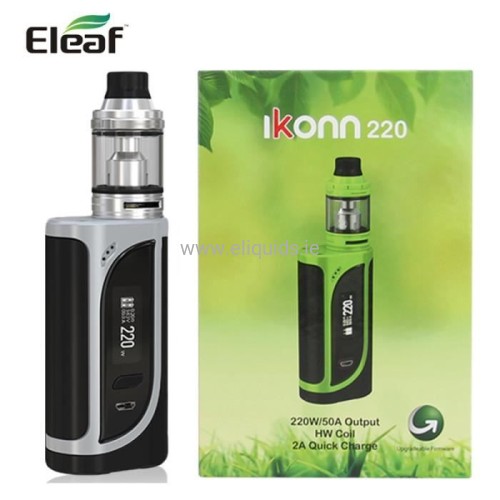

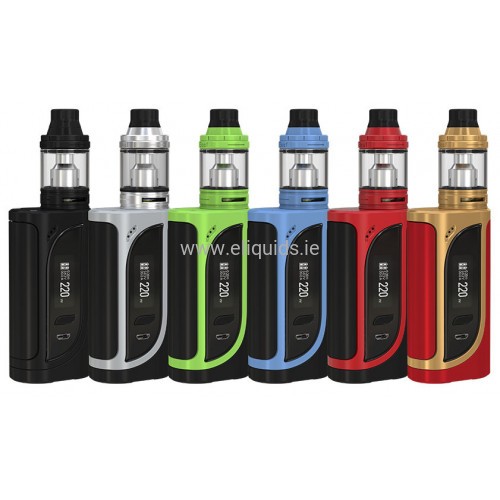

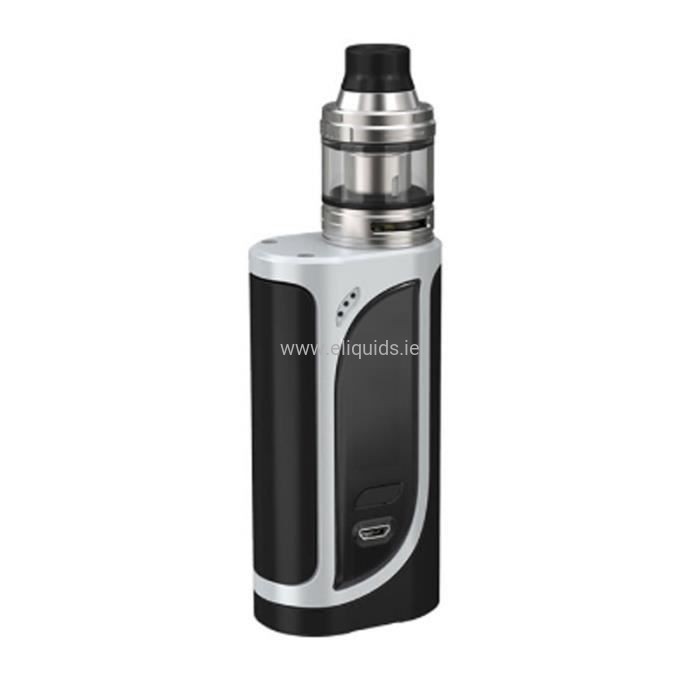

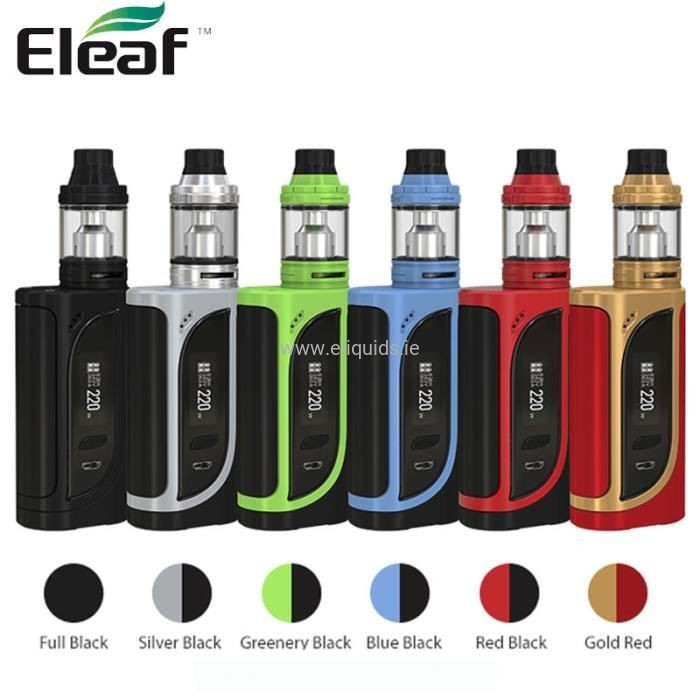

Eleaf iKonn 220W Kit with Ello Archive
Regular price:
product unavailable
Description
Eleaf iKonn 220W Kit with Ello – Archive Entry
Archive Notice
The Eleaf iKonn 220W Kit with Ello Tank is preserved today as part of the eliquids.ie Vape Museum archive. When released, the iKonn platform represented a new generation of high-power box mods designed for experienced vapers who required strong output capability and flexible temperature control modes.
Over time, however, vaping hardware evolved toward compact pod systems and simplified refillable devices. As a result, many earlier high-power box mods like the iKonn 220 gradually moved out of mainstream retail catalogues and became part of the historical development of modern vaping technology.
The Eleaf iKonn 220 is a dual-battery regulated vape mod capable of delivering up to 220 watts of output power. Designed for sub-ohm vaping setups, the device uses two external 18650 high-drain batteries installed behind a magnetic battery door. This configuration allowed significantly higher power levels compared with earlier single-battery devices.
The mod features a 0.91-inch OLED display that provides clear information about wattage, resistance, battery status and operating mode. Users can select between variable wattage mode or temperature control modes for nickel, titanium and stainless-steel coil materials.
The kit includes the Eleaf Ello sub-ohm tank, a compact atomizer designed for flavour and vapour production. The tank incorporates a convenient sliding top-fill mechanism and adjustable airflow slots that allow users to tune the draw from restricted airflow to a more open direct-lung inhale.
For the European market, the Ello tank was supplied in a 2 ml TPD-compliant version. The tank supports the Eleaf HW series coil platform, including multi-cylinder coil heads designed for higher-power vaping and dense vapour production.
- High-power dual-battery box mod
- Maximum output up to 220 W
- Dual 18650 battery configuration
- Ello sub-ohm tank system
- Compatible with Eleaf HW coil series
Technical Specification Matrix
| Parameter | Specification | Usage Context | Technical Notes |
|---|---|---|---|
| Device Type | Dual-battery regulated box mod kit | Advanced vaping setups | High-power chipset |
| Power Range | 1 W – 220 W | Direct-lung vaping | Variable wattage control |
| Battery Type | 2 × 18650 batteries | Replaceable battery system | Magnetic battery door |
| Output Modes | VW / TC-Ni / TC-Ti / TC-SS / TCR | Advanced customization | Temperature control capable |
| Display | 0.91" OLED screen | Monitoring device data | Dual battery indicator |
| Tank | Eleaf Ello | Sub-ohm tank | Sliding top-fill design |
| Tank Capacity | 2 ml (TPD version) | EU / Ireland compliant | Glass tank section |
| Coil Compatibility | Eleaf HW coil series | Sub-ohm cloud vaping | HW3 / HW4 coil options |
Market & Regulatory Context – Ireland
High-power box mods such as the Eleaf iKonn 220 were commonly used by experienced vapers across Ireland during the late 2010s. Vape shops in cities like Dublin often recommended these devices to users who wanted stronger vapour production and adjustable power settings compared with entry-level vape pens.
Under the EU Tobacco Products Directive (TPD), refillable tanks sold within Ireland must not exceed a capacity of 2 ml. The Ello tank supplied with this kit was therefore produced in a reduced-capacity version for the European market.
FAQ – Eleaf iKonn 220 Kit
What batteries are required for the Eleaf iKonn 220?
The device requires two external 18650 high-drain batteries installed inside the mod.
What tank is included with the iKonn 220 kit?
The kit includes the Eleaf Ello sub-ohm tank with sliding top-fill design and adjustable airflow.
What is the maximum power output of the device?
The Eleaf iKonn mod can deliver up to 220 watts depending on battery condition and coil resistance.
Why is the Eleaf iKonn 220 now archived?
Many users migrated from large dual-battery box mods to smaller pod systems and simplified vaping devices.
