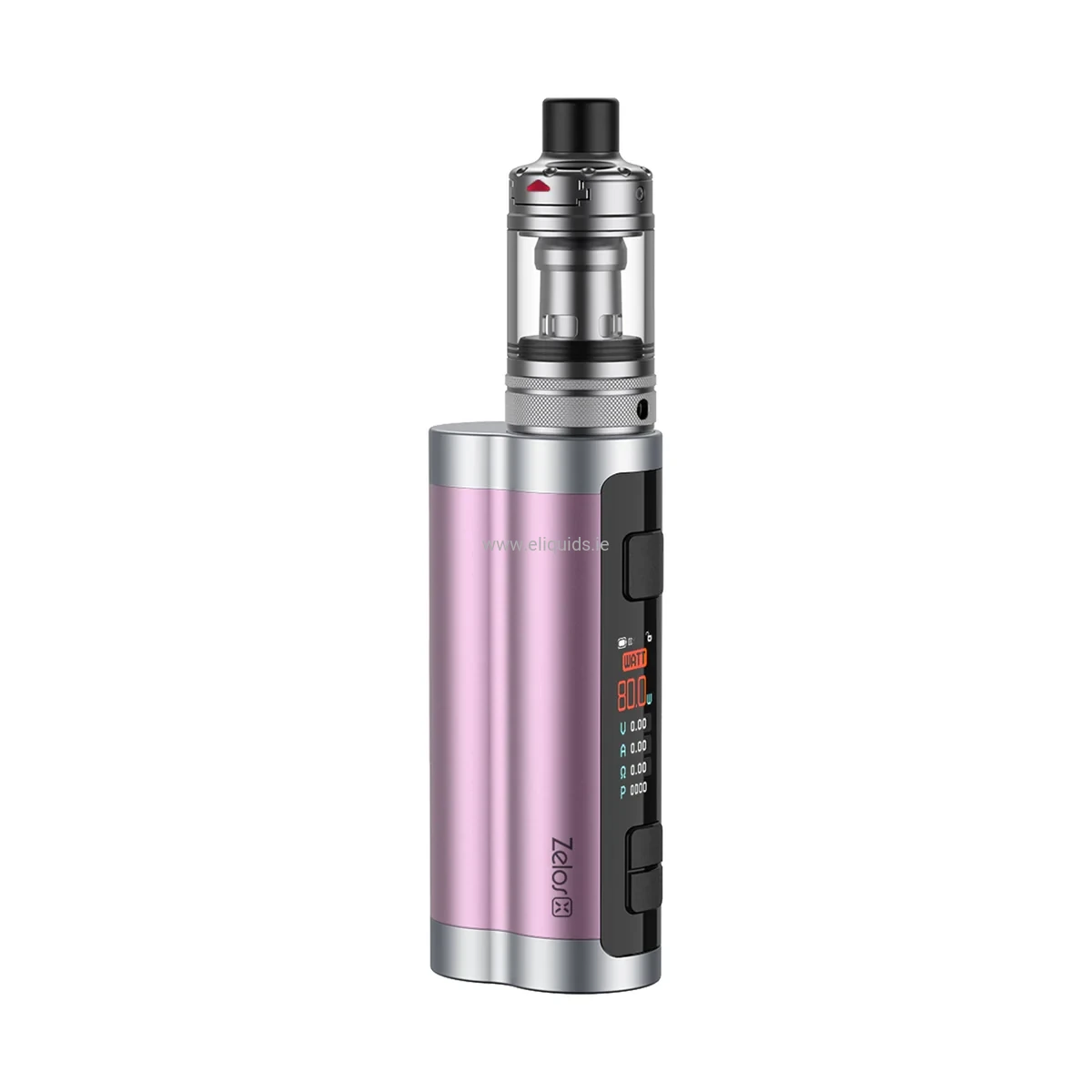

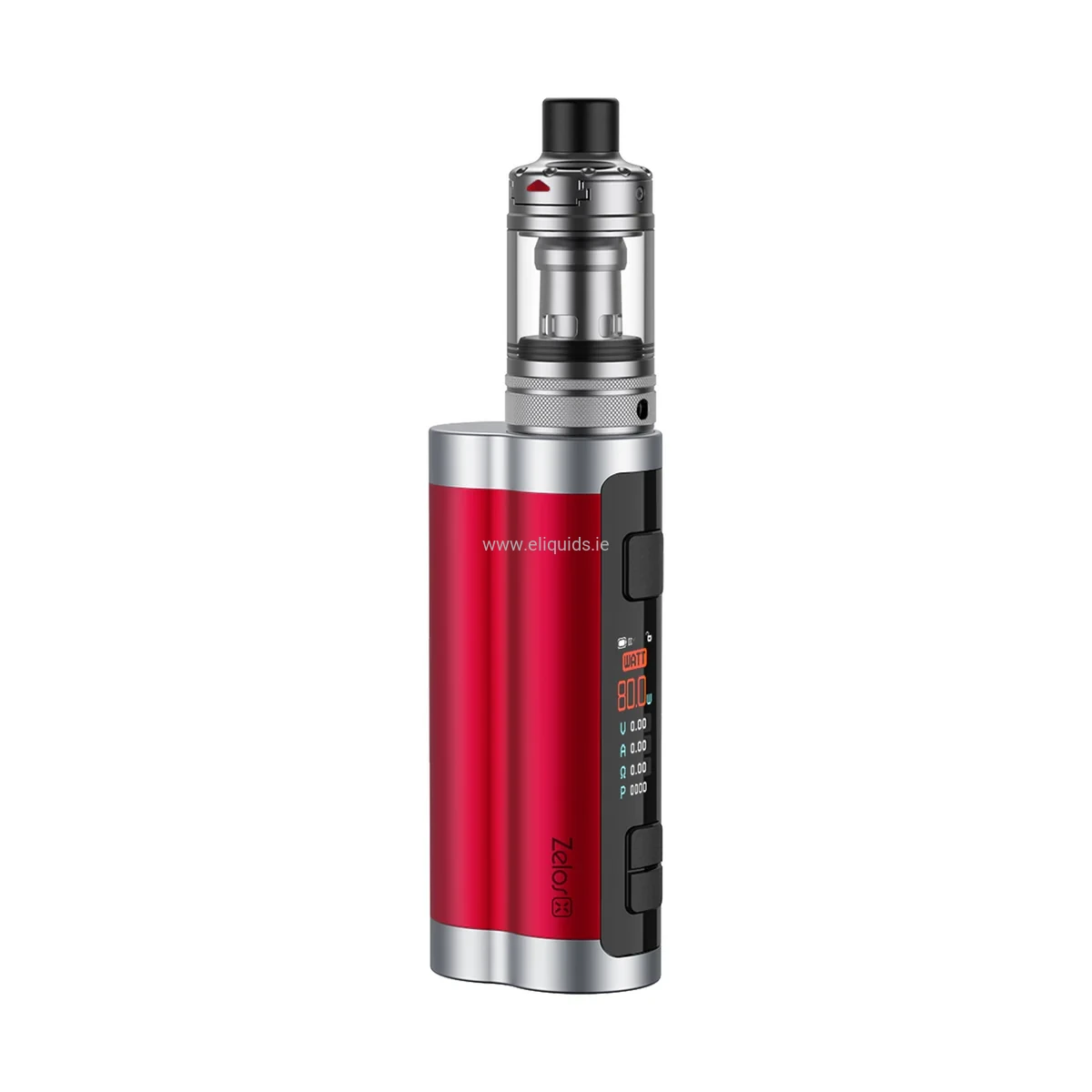

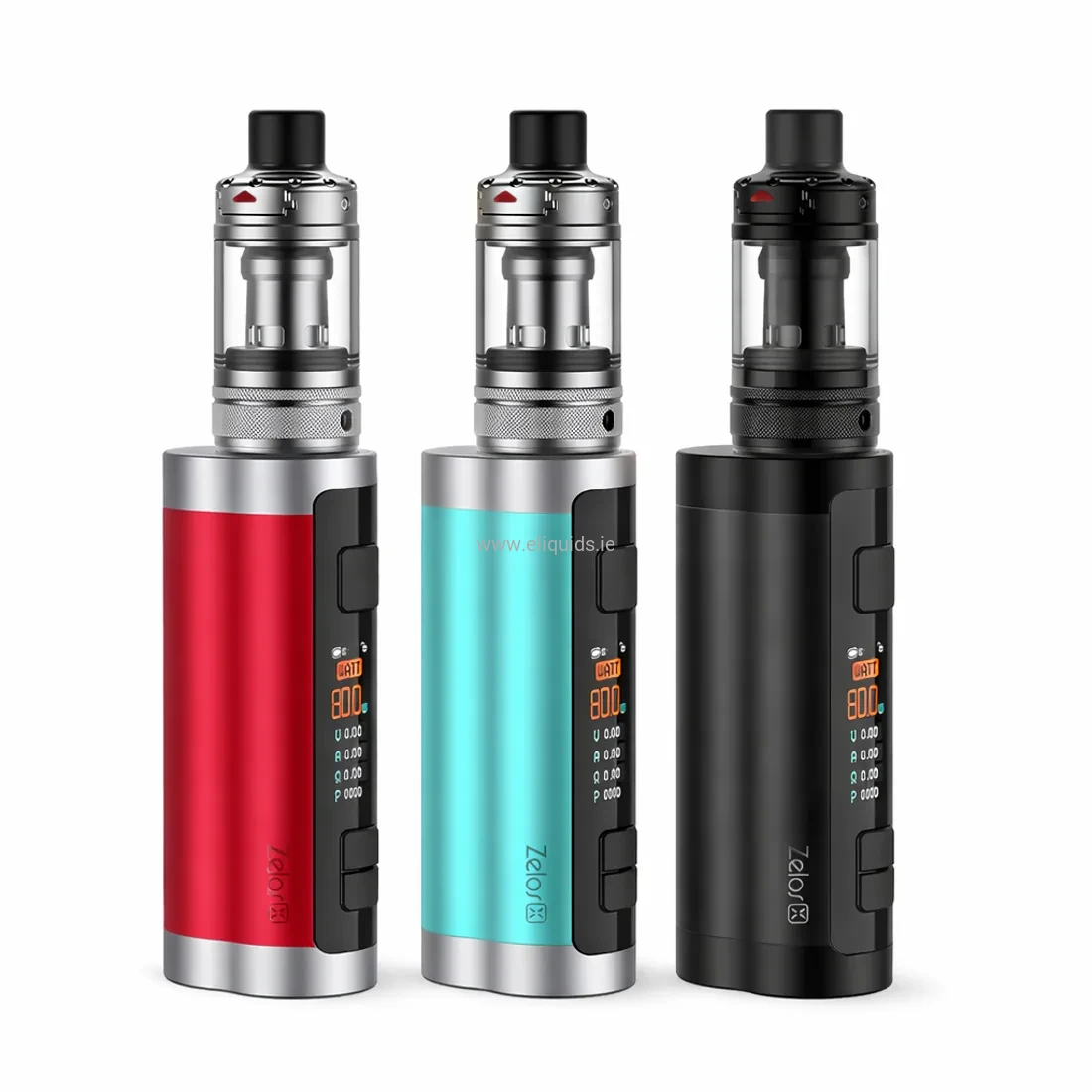

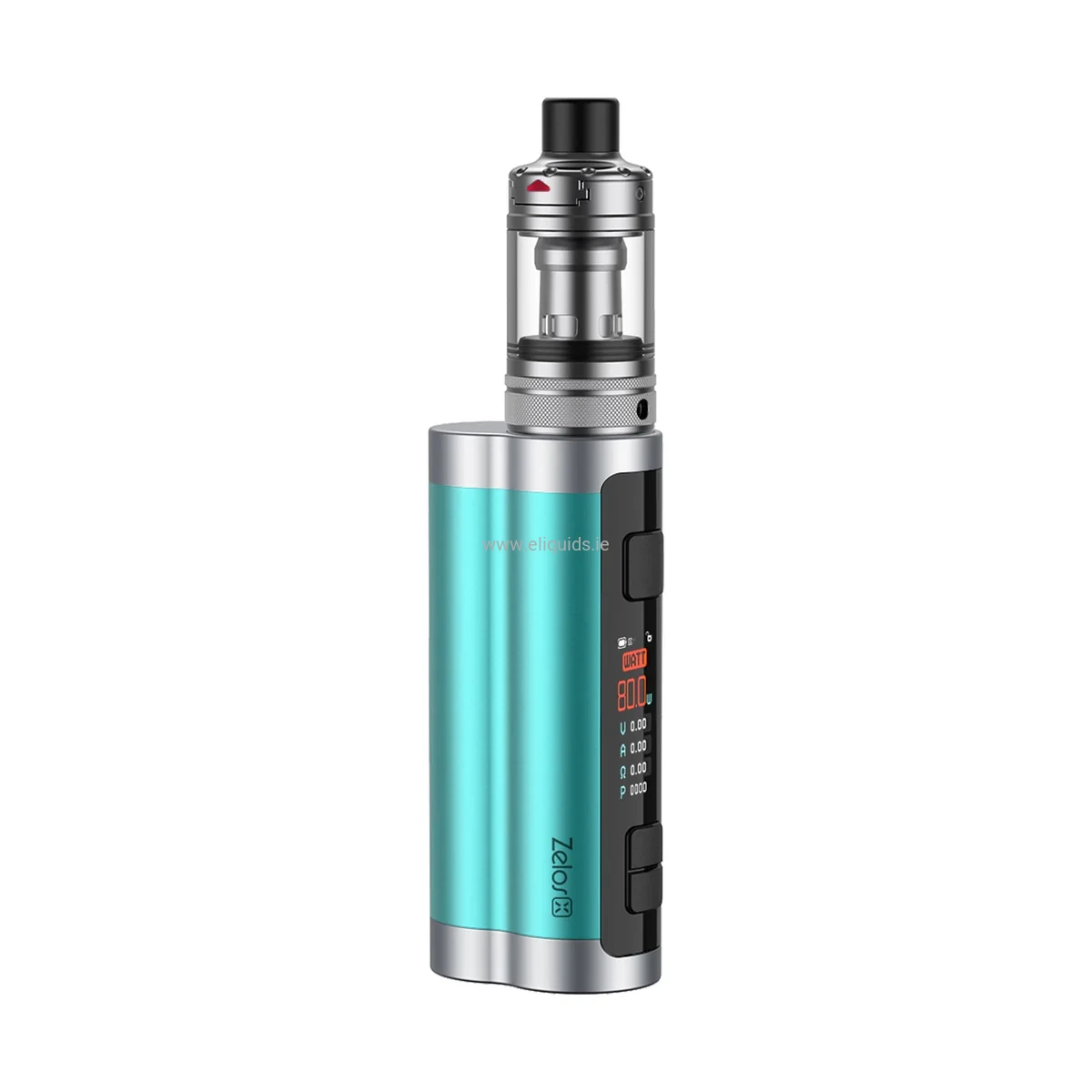

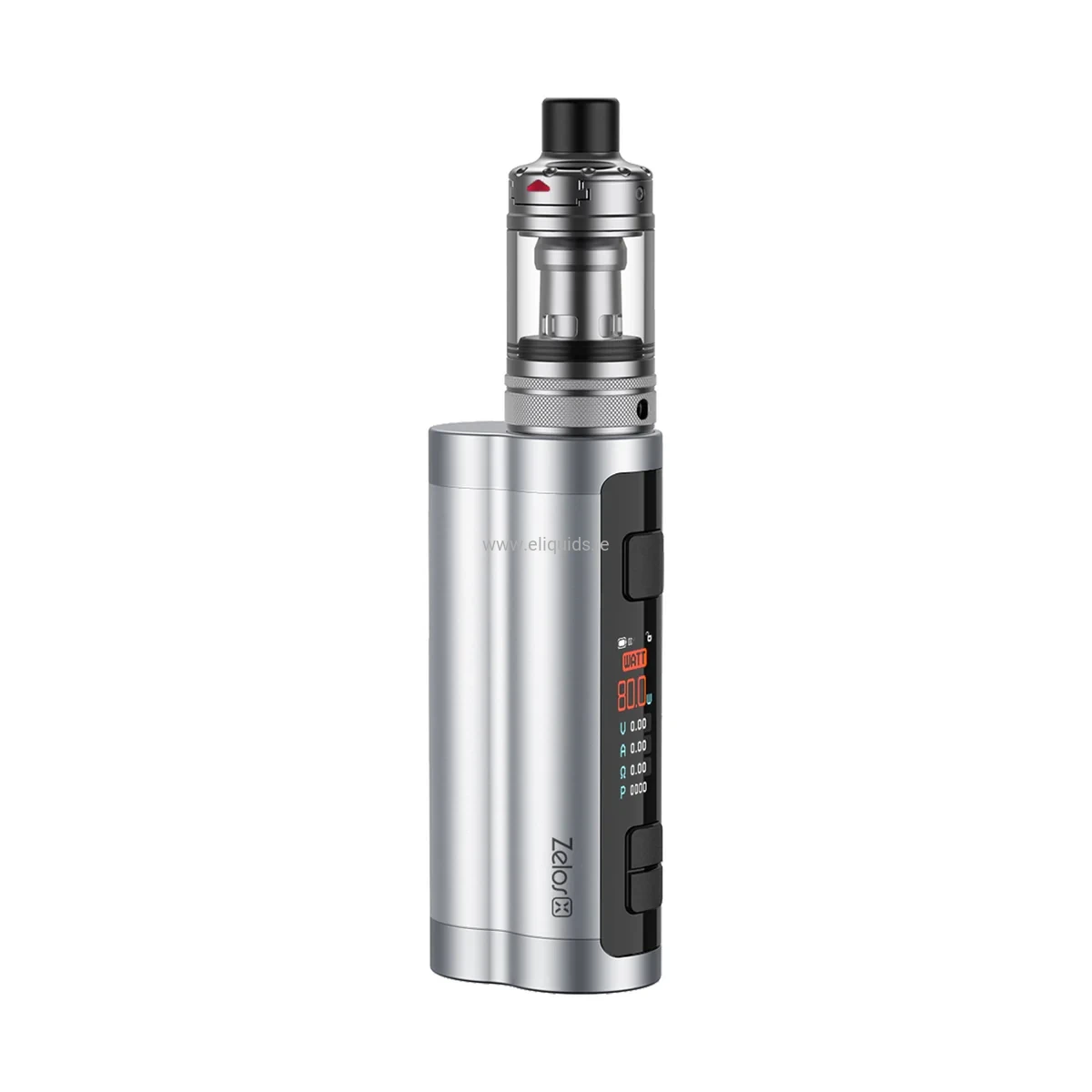

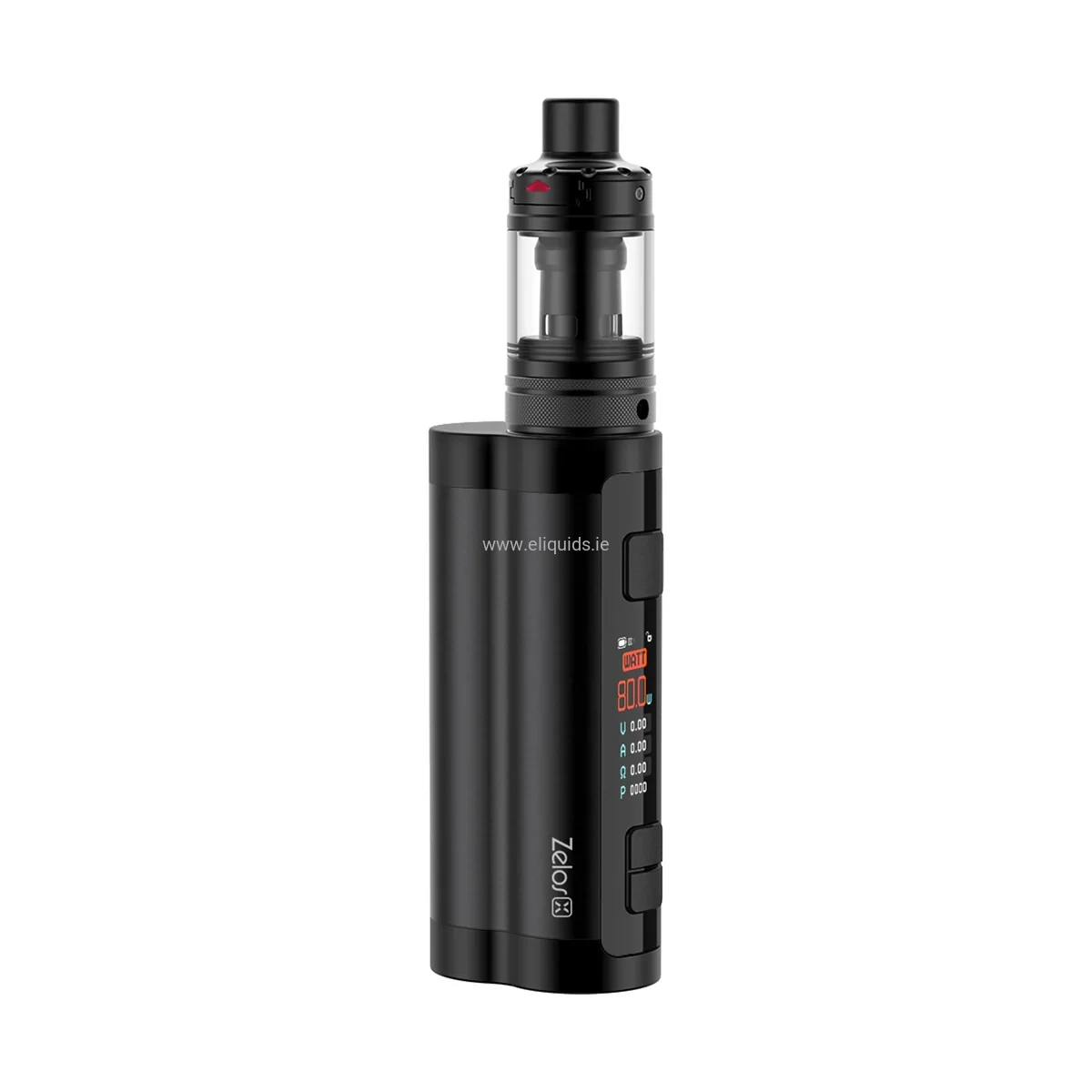

Aspire Zelos X Vape Kit

Aspire Zelos X Kit – 1–80W Mod | 18650 External Battery | Nautilus 3 Tank

The Aspire Zelos X Kit is a regulated 510 box mod requiring a single external 18650 battery (not included) and supporting adjustable output from 1W to 80W. The kit is paired with the Nautilus 3 (22mm EU TPD) tank and operates exclusively via fire button activation.

This is not a pod system. Zelos X is a traditional threaded 510 device designed for use with replaceable-coil tanks.

Short Technical Intro

Zelos X combines a compact 18650-powered mod with the Nautilus 3 tank, delivering precise wattage control and compatibility with the Nautilus BVC coil series. The device features a 0.96” TFT colour display and multiple output modes.

Quick Technical Summary

• Activation: Fire button only
• Battery Type: 1 × 18650 (external, not included)
• Power Range: 1W–80W adjustable
• Display: 0.96” TFT colour screen
• Charging: USB-C, 5V / 2A
• Tank Capacity: 2ml (EU TPD Nautilus 3 – 22mm)
• Included Coils: Nautilus 2S Mesh 0.7Ω + Nautilus BVC 1.8Ω
• Static Wick Saturation Time: 5–7 minutes

What’s in the Box

• 1 × Aspire Zelos X Mod (18650 required)
• 1 × Nautilus 3 Tank 22mm (2ml EU)
• 1 × 0.7Ω Nautilus 2S Mesh Coil (pre-installed)
• 1 × 1.8Ω Nautilus BVC Coil
• 1 × Spare Glass Tube
• 1 × USB-C Cable
• 1 × User Manual

Battery not included. Box contents may vary by batch.

Heating Element Status

Heating Element: Replaceable Coil Architecture – Nautilus BVC / Nautilus 2S coil series.

Activation & Control

• Fire button activation only
• Adjustable wattage 1–80W
• Multiple output modes (VW / VV / Bypass / TC modes)
• 0.96” TFT colour display
• Bottom battery door (18650)

Tank Filling Protocol – Slide Top-Fill System

• Slide the top cap to expose fill port
• Insert bottle nozzle into side port
• Avoid central airflow chimney
• Close cap securely
• Wait saturation time before first use

Static Wick Saturation Time

Static Wick Saturation Time: 5–7 minutes after first fill.

E-Liquid Compatibility Guidance

0.7Ω Mesh (18–23W RDL):

• ✔ Optimal: 50–60VG
• ✔ Suitable for freebase nicotine

1.8Ω BVC (10–14W MTL):

• ✔ Recommended: 50/50 VG/PG
• ✔ Suitable for nicotine salts

Viscosity Note (Ireland): VG thickens below 10°C. Extend priming time in cold conditions.

Hardware Specification Matrix

Compatibility Last Verified

Compatible with Aspire Nautilus BVC and Nautilus 2S coil series. Standard 510 connection allows use with other compatible tanks up to 80W.

Safety Features

• Short-circuit protection
• Overheat protection
• Low-voltage protection
• 10-second cut-off

FAQ

Document Update Notice:
This product description was last reviewed and updated on 16 February 2026.
